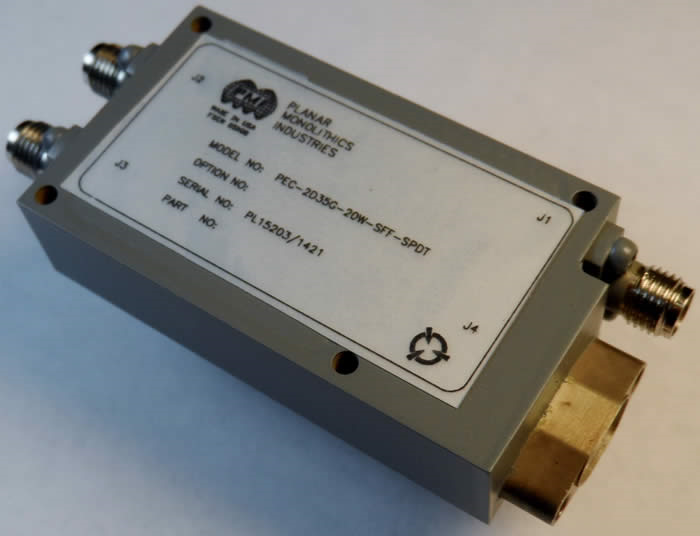

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP2T |
|---|
| Reflective / Absorptive: | Reflective |
|---|
| Frequency Range (GHz): | 2.2 to 2.5 |
|---|
| Frequency Min (GHz): | 2.2 |
|---|
| Frequency Max (GHz): | 2.5 |
|---|
| Insertion Loss (dB): | 2.5 dB Typ, 3 dB Max |
|---|
| Insertion Loss - Typ (dB): | 2.5 dB |
|---|
| Isolation (dB): | 40 dB Min |
|---|
| Isolation - Typ (dB): | 40 dB |
|---|
| Switching Speed (Typ): | 150 ns |
|---|
| VSWR In/Out: | 1.5:1 Max |
|---|
| Input Power (dBm): | 20 W Max (Hot switching without damage |
|---|
| Switching Speed: | 100 ns goal, 350 ns Max |
|---|
| Power Supply: | +12 VDC and -28 VDC |
|---|
| Connectors: | SMA (F) |
|---|
| Size: | 2.75" x 1.18" x 0.51" |
|---|
| Finish: | Hermetically Sealed, Aluminum 6061-T6 Housing with Aluminum 4047 Covers, Painted Blue |
|---|
| Weight: | < 8.1 oz. |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 to +85 ºC |
|---|
| Temperature (Storage): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-810F, Method 507.4 |
|---|
| Shock: | MIL-STD-810F, Method 516.5 |
|---|
| Vibration: | MIL-STD-810F, Method 514.5 |
|---|
| Altitude: | MIL-STD-810F, Procedure II |
|---|
| Temperature Cycle: | MIL-STD-810F, Method 503.4, Procedure I |
|---|
