PEC-28-9G10G-3R0-29-SFF Preliminary

Low Noise Amplifier

PEC-28-9G10G-3R0-29-SFF
Product Feature

Quantic PMI Model PEC-28-9G10G-3R0-29-SFF is a Low Noise Amplifier that operates over the 9 to 10 GHz Frequency Range that offers a gain of 22 dB with a gain flatness of ±0.35 dB, a maximum noise figure of 7 dB, and a minimum OP1dB of 29 dBm. Package size is 1.5" x 1.0" x 0.4" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 9 to 10
Frequency Min (GHz): 9
Frequency Max (GHz): 10
Gain (dB): 22 dB Min @ 25 °C Base Plate Temperature
Gain Flatness (dB): ±0.35 dB Typ, ±0.5 dB Max
Noise Figure (dB): 7 dB Max
VSWR In/Out: 1.7:1 Typ, 2.0:1 Max
OP1dB (dBm): 29 dBm Min
OIP3: 31 dBm Typ.
DC Voltage: 10 VDC /+12 VDC / +15 VDC
DC Current Draw: 200 mA Min / 400 mA Typ/700 mA Max
Spurious: -60 dBc Max
Gain Variation Over Temperature: ±2 dB Typ
Connectors: SMA Female

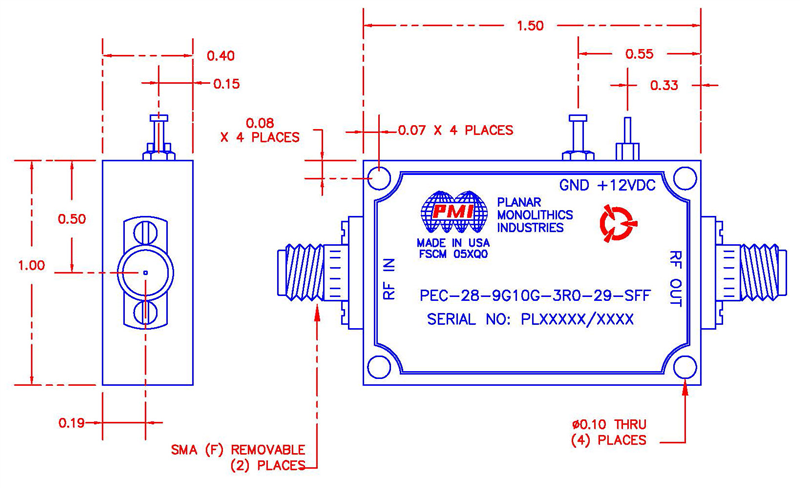

Size: 1.5" x 1.0" x 0.4"
Finish: Nickel Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -20 °C to +65 °C
Temperature (Non-Operating): -45 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond B
Shock: MIL-STD-202F, Method 213B Cond B
Altitude: MIL-STD-202F, Method 105C Cond B
Temperature Cycle: MIL-STD-202F, Method 107
