PEC-28-9D4G15D1G-5R0-24-12-SFF Preliminary

Low Noise Amplifier

Quantic PMI Model PEC-28-9D4G15D1G-5R0-24-12-SFF is  a 9.4 to 15.1 GHz low noise amplifier with a gain of 16 dB; noise figure of 5.5 dB with an OP1dB of 24 dBm. Supplied in our PE2 housing that can be used as an SMA connectorized or surface mounted component.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 9.4 to 15.1
Frequency Min (GHz): 9.4
Frequency Max (GHz): 15.1
Gain (dB): 16 dB Min, 28 dB Max
Noise Figure (dB): 5.5 dB Max
OP1dB (dBm): 24 dBm Min @ 8 dBm Input Power
DC Voltage (VDC): +12 ± 1.5 VDC
DC Current (mA): 350 mA Typ, 400 mA Max
Return Loss In/Out: 10 dB Min
Maximum Input Power: 16 dBm CW
Connectors: SMA Female - removable

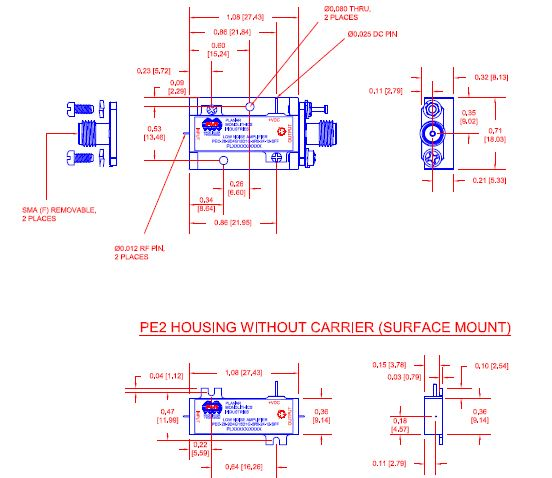

Housing: PE2
Finish: Gold Plated
Second Harmonics: -22 dBc Max @ 9.5 & 10 GHz Input
Environmental Ratings:
Temperature (Operating): 0 °C to +55 °C
Temperature (Storage): -20 °C to +55 °C
Humidity: MIL-STD-202, Method 103B Cond. B - 95%
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL., STD-202, Method 105C Cond A
Temperature Cycle: MIL., STD-202, Method 107D Cond A
