PEC-27-30M500M-3R0-25-15-SFF Active

High Linearity, Low Noise Amplifier

PEC-27-30M500M-3R0-25-15-SFF
Product Feature

Quantic PMI Model PEC-27-30M500M-3R0-25-15-SFF is a High Linearity, Low Noise Amplifier that operates in the 0.03 to 0.5 GHz frequency range with a a typical gain of 27 dB: a maximum gain flatness of ±1 dB; a maximum noise figure of 3 dB; 25 dBm OP1dB and a maximum VSWR of 2.0:1. Designed for a airborne applications this model is hermetically sealed with a package size is 1.845"" x 0.86" x 0.33" and has SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.03 to 0.5
Frequency Min (GHz): 0.03
Frequency Max (GHz): 0.5
Gain (dB): 27 dB
Gain Flatness (±dB): ±1 dB
Noise Figure (dB): 3 dB
OP1dB (dBm): 25 dBm
OIP2 (dBm): 55 dBm
OIP3 (dBm): 45 dBm
VSWR: 2.0:1
DC Voltage Supply (VDC): +12 to +15 VDC
DC Current (mA): 300 mA
Connectors: SMA Female

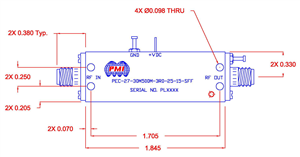

Size: 1.845"" x 0.86" x 0.33"
Export Classification (ECCN): EAR99
Environmental Ratings::
Temperature (Operating): -30 °C to +85 °C
Temperature (Non-Operating): -65 °C to +125 °C
