PEC-27-20M500M-4-25-15-SFF
Preliminary
Low Noise Amplifier
Quantic PMI Model PEC-27-20M500M-4-25-15-SFF is a 0.02 to 0.5 GHz Low Noise Amplifier that has a typical gain of 30 dB while maintaining a ±1 dB Flatness. This small 1.37" x 1.00" x 0.60" package is outfitted with SMA Female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 02 to 0.5 |
|---|
| Frequency Min (GHz): | 0.02 |
|---|
| Frequency Max (GHz): | 0.5 |
|---|
| Gain (dB): | 25 dB Min,
30 dB Max |

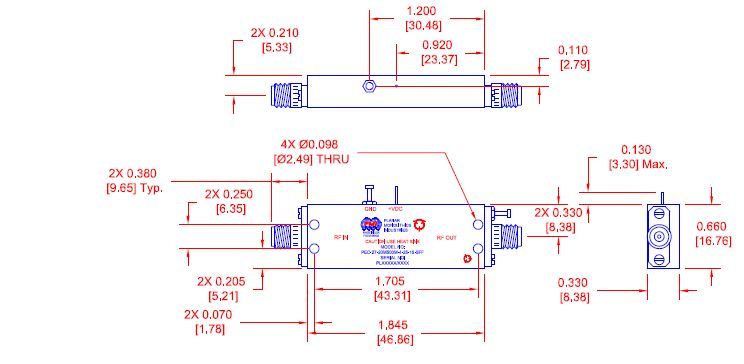

|---|
| Gain Flatness (dB): | ±1 dB Typ |
|---|
| Noise Figure (dB): | 4.5 dB Typ |
|---|
| VSWR In/Out: | 2.0:1 |
|---|
| OP1dB (dBm): | 25 dBm Typ |
|---|
| DC Voltage: | +15 VDC |
|---|
| DC Current Draw: | 500 mA |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 1.37" x 1.00" x 0.60" |
|---|
| Finish: | Painted Blue - Mounting Gold |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -30 °C to +55 °C |
|---|
| Temperature (Non-Operating): | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
|---|
