PEC-27-20M1G-3R0-25-15-SFF Preliminary

Low Noise Amplifier

PEC-27-20M1G-3R0-25-15-SFF
Product Feature

Quantic PMI Model PEC-27-20M1G-3R0-25-15-SFF is a 0.02 to 1 GHz low noise amplifier that offers a gain of 27 dB with a gain flatness of ±1 dB, a maximum noise figure of 3 dB, and a minimum OP1dB of 25 dBm. Package size 1.845" x 0.66" x 0.33" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Min (GHz): 0.02
Frequency Max (GHz): 1
Gain (dB): 27 dB
Gain Flatness (dB): ±1 dB Max
Noise Figure (dB): 3 dB Max
VSWR In/Out: 2.0:1
OP1dB (dBm): 25 dBm Min
OIP3: 45 dBm Min
DC Voltage: +12 to +15 VDC
OIP2: 55 dBm Min
Sealing: Hermetic
Connectors: SMA Female

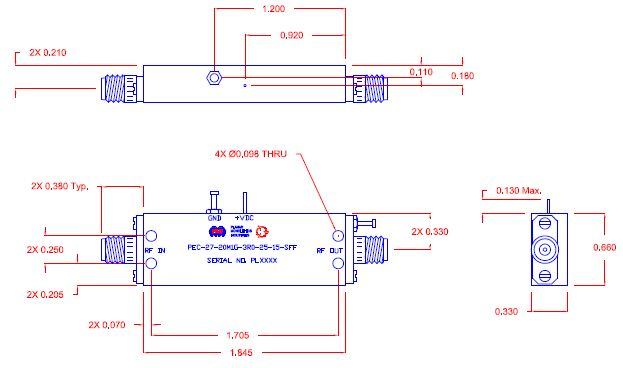

Size: 1.845" x 0.66" x 0.33"
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -30 °C to +55 °C
Temperature (Non-Operating): -65 °C to +125 °C
