PEC-26-10G40G-20-12-292FF Active

Low Noise Amplifier

Product Feature
Additional Documents

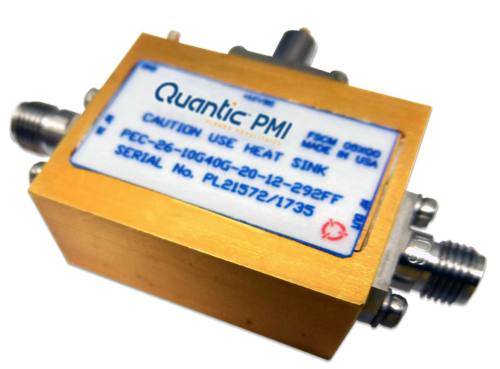

Quantic PMI Model PEC-26-10G40G-20-12-292FF is a 10 to 40 GHz low noise amplifier that offers a gain of 26 dB and a ±2.5 dB gain flatness with a noise figure of 5.5 dB and a OP1dB of 17 to 19 dBm.  Package size is 1.37" x 1.0" x 0.6" with removable 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 10 to 40
Frequency Min (GHz): 10
Frequency Max (GHz): 40
Gain (dB): 26 dB Typ
Gain (Measured): 26 dB Typ - Measured 20.9 dB Min, 26.7 dB Max
Gain Flatness: ±2.5 dB Typ
Noise Figure (dB): 5.5 dB Max (up to 20 GHz)
OP1dB (dBm): 19 dBm Typ (10 to 18 GHz),
17 dBm Typ (18 to 40 GHz)
VSWR In/Out: 2.0:1 Max / 2.5:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 400 mA Typ - Measured 330 mA
Input Power: 17 dBm CW
Connectors: 2.92mm Female
Size: 1.37" x 1.0" x 0.6"
Environmental Ratings:
Temperature: -55 ºC to +85 ºC Operating, -65 ºC to +117 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
