PEC-25-70M330M-2-20-5-SFF
Preliminary
Low Noise Amplifier
Quantic PMI Model PEC-25-70M330M-2-20-5-SFF is a Low Noise Amplifier operating over the 0.07 to 0.33 GHz frequency range. This model offers a minimum gain of 25 dB while maintaining a maximum noise figure of 2 dB. This compact model housing size is 1.25" x 1.25" x 0.563" with female SMA connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 07 to 0.33 |
|---|
| Frequency Min (GHz): | 0.07 |
|---|
| Frequency Max (GHz): | 0.33 |
|---|
| Gain (dB): | 20 dB Min,
25 dB Typ |
|---|
| Noise Figure (dB): | 2 dB Typ |
|---|
| VSWR In/Out: | 2.0:1 |
|---|
| OP1dB (dBm): | 20 dBm Min |
|---|
| OIP3: | 30 dBm Typ |
|---|
| RF Input Power: | 20 dBm Max |
|---|
| DC Voltage: | +5 VDC (±5%) |
|---|
| DC Current Draw: | 100 mA |
|---|
| Connectors: | SMA Female |
|---|

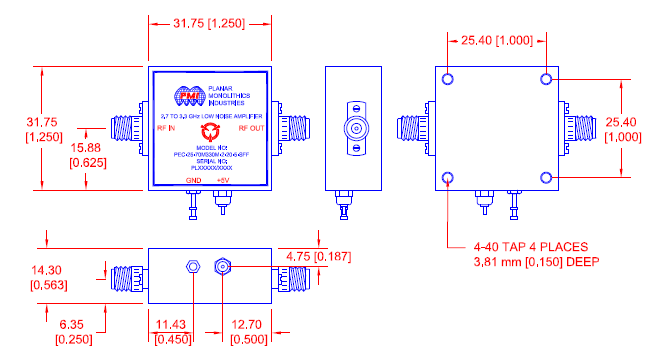

| Size: | 1.25" x 1.25" x 0.563",
31.75mm x 31.75mm x 14.30mm |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to 85 ºC |
|---|
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
