PEC-25-5D245D76-1R1-13-SFF Preliminary

Low Noise Amplifier

PEC-25-5D245D76-1R1-13-SFF
Product Feature

Quantic PMI Model PEC-25-5D245D76-1R1-13-SFF is a low noise amplifier that operates over the 5.24 to 5.76 GHz frequency range that provides 25 dB of gain with an OP1dB of 13 dBm, a noise figure is 1.1 dB and  operates off a single +15 VDC supply. Package size is 1.5" x 0.96" 0.36" with removable SMA connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 5.24 to 5.76
Frequency Min (GHz): 5.24
Frequency Max (GHz): 5.76
Gain (dB): 24 dB Min,
28 dB Max
Gain Flatness (dB): ±1 dB Max
Noise Figure (dB): 1.1 dB Max,
1 dB Typ
OP1dB (dBm): 13 dBm Min @ 1.dB PT
OIP3: 23 dBm Typ
DC Voltage: +15 VDC
DC Current Draw: 150 mA Typ
Connectors: SMA Female - removable

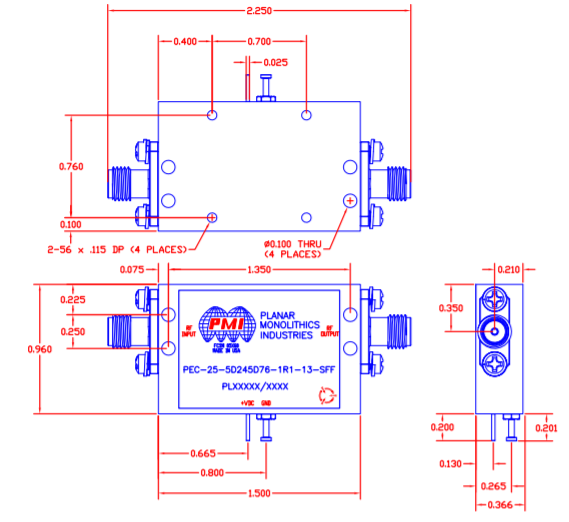

Size: 1.5" x 0.96" 0.36"
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): 0 ºC to +60 ºC
Temperature (Non-Operating): -55 ºC to 100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
