PEC-25-135M165M-1R0-18-12-SFF Preliminary

Low Noise Amplifier

PEC-25-135M165M-1R0-18-12-SFF
Product Feature

Quantic PMI Model PEC-25-135M165M-1R0-18-12-SFF is a 0.135 to 0.165 GHz, low noise amplifier that has a gain of 25 dB with ±0.5 dB gain flatness, OP1dB of 18 dBm and a noise figure of 1 dB.  Package size is 2.68" x 0.58" 0.36" with removable SMA connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.135 to 0.165
Frequency Min (GHz): 0.135
Frequency Max (GHz): 0.165
Gain (dB): 25 dB Nom,
22 dB Min
Gain Flatness (dB): ±0.5 dB Max
Noise Figure (dB): 1 dB Max
VSWR In/Out: 2.0:1
OP1dB (dBm): 18 dBm Typ
RF Input Power: 20 dBm CW Max
DC Voltage: +12 to +15 VDC
DC Current Draw: 75 mA Nom
Connectors: SMA Female - removable

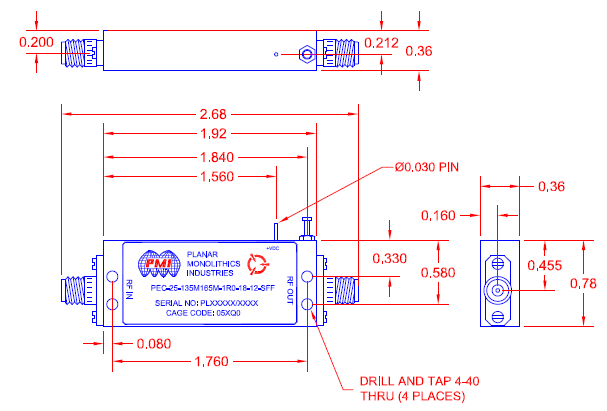

Size: 2.68" x 0.58" 0.36"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 ºC to 85 ºC
Temperature (Non-Operating): -55 ºC to +125 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
