PEC-25-0R8G2D5G-2R5-20-SFF-LPN Preliminary

Low Noise Amplifier

PEC-25-0R8G2D5G-2R5-20-SFF-LPN
Product Feature

Quantic PMI Model PEC-25-0R8G2D5G-2R5-20-SFF-LPN is an 0.8 to 2.5 GHz, Low Noise Amplifier offers a gain of 25 dB with ±1.5 dB gain flatness, an OP1dB of 20 dBm minimum, a noise figure of 2.5 dB and a typical phase noise of -140 dBc/Hz at 1 MHz offset. Package size is 2.68" x 0.58" 0.36" with removable SMA connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.8 to 2.5
Frequency Min (GHz): 0.8
Frequency Max (GHz): 2.5
Gain (dB): 25 dB Nom
Gain Flatness (dB): ±1.5 dB Max
Noise Figure (dB): 2.5 dB Typ
VSWR In/Out: 2.0:1
OP1dB (dBm): 20 dBm Min
RF Input Power: 15 dBm CW Max
DC Voltage: +12 to +15 VDC
DC Current Draw: 220 mA Nom
Connectors: SMA Female - removable

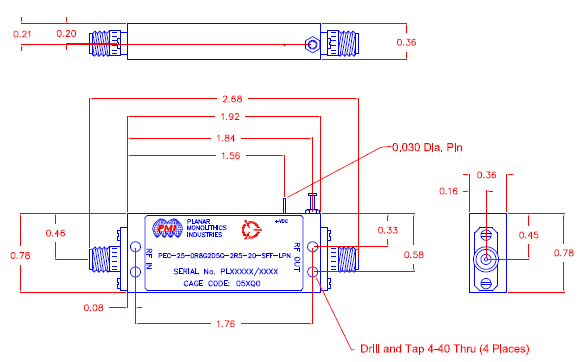

Size: 2.68" x 0.58" 0.36"
Finish: Painted Blue (Mounting Surface Unpainted)
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 ºC to 85 ºC
Temperature (Non-Operating): -50 ºC to +125 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
