PEC-23-11G13G-4R5-27-15-SFF Preliminary

Medium Power Low Noise Amplifier

Product Feature

Quantic PMI Model PEC-23-11G13G-4R5-27-15-SFF is a 11 to 13 GHz medium power, low noise amplifier offering 23 dB gain and an OP1dB of 26.5 dBm with a low noise figure of 4.5 dB. This amplifier is supplied in a housing measuring 1.0" x 0.63" x 0.25".

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 11 to 13
Frequency Min (GHz): 11
Frequency Max (GHz): 13
Gain (dB): 20 dB Min,
25 dB Max
Gain Flatness: ±1.5 dB Typ
Noise Figure (dB): 4.5 dB Typ,
5 dB Max
OP1dB (dBm): 26.5 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +15 VDC
DC Current (mA): 500 mA Max
Impedance: 50 Ohm
Input Power: 23 dBm CW Max
Connectors: SMA Female - removable

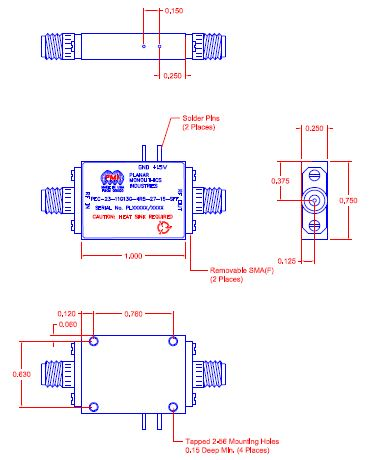

Size: 1.0" x 0.63" x 0.25"
Finish: Gold Plated
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. C
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
