PEC-22-41G43G-6R0-24-292FF Preliminary

Low Noise Amplifier

PEC-22-41G43G-6R0-24-292FF
Product Feature

Quantic PMI Model PEC-22-41G43G-6R0-24-292FF is a low noise amplifier that operates over the 41 to 43 GHz frequency range that provides 22 dB minimum gain, a maximum noise figure of 6 dB and a minimum OP1dB of 24 dBm. Package size is 1.08" x 1.5" x 0.36" with removable SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 41 to 43
Frequency Min (GHz): 41
Frequency Max (GHz): 43
Gain (dB): 22 dB Min
Gain Flatness (dB): ±1.5 dB Typ
Noise Figure (dB): 6 dB Max
VSWR In/Out: 2.5:1 Max
OP1dB (dBm): 24 dBm Min
DC Voltage: 8 VDC
DC Current Draw: 500 mA Max
Connectors: SMA Female - removable

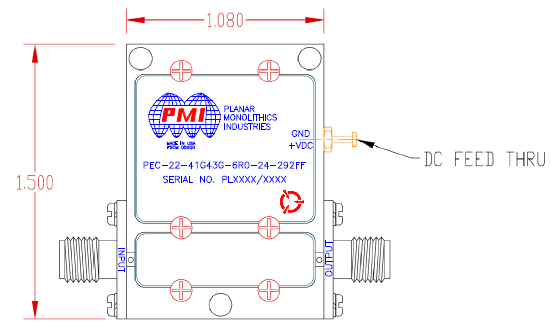

Size: 1.08" x 1.5" x 0.36"
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -25 ºC to +70 ºC
Temperature (Non-Operating): -55 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
