PEC-20-618-14-15-SFF Active

Low Noise Amplifier

Product Feature

Quantic PMI Model PEC-20-618-14-15-SFF is a low noise amplifier that operates over the frequency range of 6 to 18 GHz with a gain of 19 dB; noise figure of 9 dB; gain flatness of ±1.5 dB with an OP1dB of 8 dBm. Supplied in a housing measuring 2.45" x 1.0" x 0.6" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 6 to 18
Frequency Min (GHz): 6
Frequency Max (GHz): 18
Gain (dB): 19 dB Min, 22 dB Max
Noise Figure (dB): 9 dB Max
OP1dB (dBm): 14 dBm Min
VSWR In/Out: 1.9:1 Max
DC Voltage (VDC): +15 VDC
DC Current (mA): 380 mA
OIP3: 24 dBm Min
Connectors: SMA Female - removable

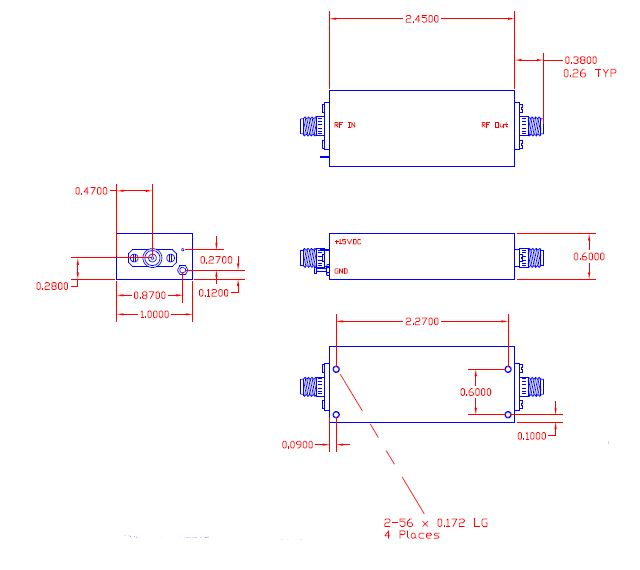

Size: 2.45" x 1.0" x 0.6"
Output Power @ P1dB: 14 dBm Min
Gain Variation J1 to J2: ±1.5 dB Max
2nd Harmonic Rejection @ Pin = -5 dBm: -15 dBc Min
RF Overdrive Input Level: +5 dBm Max
Environmental Ratings:
Temperature (Operating): -54 °C to +85 °C
