PEC-20-30M1G-EQ-NFF Active

Broadband Positive Gain Slope Amplifier

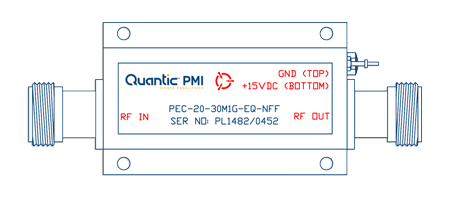

Quantic PMI Model PEC-20-30M1G-EQ-NFF is an amplifier that operates over the frequency range of 20 MHz to 1.0 GHz that offers a positive gain slope.  This amplifier is useful when trying to correct for a gain loss due to long cable runs.  This model offers 6.9 dB of gain at 20 MHz and then slopes up to 19 dB of gain at 1.0 GHz.  This model offers a remarkably high OIP2 of greater than 50 dBm while maintaining a low noise figure of 8.0 dB typical.  These are currently being used in airborne applications.

Product Specifications

General Parameters:
Status: Active
Frequency Min: 0.02 GHz
Frequency Max: 1.0 GHz
Gain: 20 dB Typ, Equalized to Match Supplied Graph
Gain Flatness: Gain Equalized per Supplied Graph
Noise Figure: 5.0 dB Max
VSWR In/Out: 2.0:1 / 2.3:1
DC Voltage: +15 V
DC Current Draw: 450 mA Max
OIP2: +50 dBm Typ
