PEC-20-200M6G-3R0-25-SFF Active

Low Noise Amplifier

Product Feature
Additional Documents

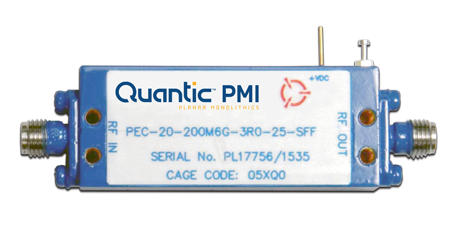

Quantic PMI Model PEC-20-200M6G-3R0-25-SFF is a 0.2 to 6 GHz Low Noise Amplifier that has a gain of 20 dB with ±1.5 dB flatness, OP1dB OF 25 dBm minimum and a noise figure of 3.5 dB.  This model has SMA female connectors in a housing that measures 1.92" x 0.78" x 0.36".

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.2 to 6
Frequency Min (GHz): 0.2
Frequency Max (GHz): 6
Gain (dB): 20 dB Nom
Gain Flatness: ±1.5 dB Typ
Noise Figure (dB): 6 dB Typ @ 0.2 GHz,
4.5 dB Typ @ 0.5 GHz,
3.5 dB Typ @ 2 GHz,
4 dB @ 6 GHz
OP1dB (dBm): 25 dBm Min
VSWR In/Out: 1.8:1 Goal
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 575 mA
Input Power: 15 dB CW Max
Connectors: SMA Female
Size: 1.92" x 0.78" x 0.36"
Finish: Painted Blue
Environmental Ratings:
Temperature (Operating): -40 °C to +85 °C
Temperature (Storage): -50 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL., STD-202F, Method 107D Cond A
