PEC-15-400M470M-37-12V-SFF Active

Balanced Linear Power Amplifier

Buy Now
Product Feature
Additional Documents

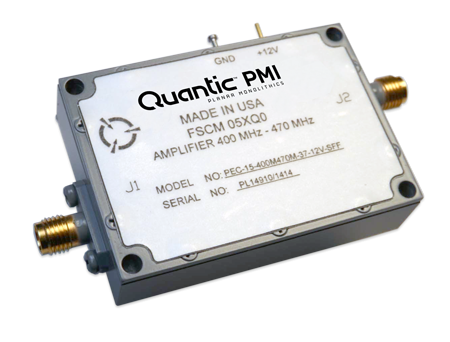

Quantic PMI Model PEC-15-400M470M-37-12V-SFF is a single stage, balanced GaAs MESFET Linear Power Amplifier operating in the frequency range of 0.4 to 0.47 GHz and provides a typical small signal gain of 15 dB and +38 dBm of output power at 1 dB gain compression. It has excellent gain flatness and good VSWR at both input and output. The unit is supplied with SMA female connectors in a housing that measures 2.08" x 1.45" x 0.50".

Product Specifications

General Parameters:
Status: Active
Frequency Min (GHz): 0.4
Frequency Max (GHz): 0.47
Gain (dB): 10 dB Min, 15 dB Typ
Psat: 37 dBm Min,
38 dBm Typ
Input Power: 25 dBm Max
DC Supply Voltage: +11.5 V Min, +12 V Typ, +13 V Max
Current Supply: 1.6 A Typ, 1.9 A Max
RF Connectors In/Out: SMA (F)
Finish: Painted Gray
Gain Flatness: ±0.75 dB Typ, ±1.0 dB Max
Size (Excluding Connectors): 2.08" x 1.45" x 0.50"
VSWR: 1.3:1 Typ, 1.5:1 Max
Spurious: -60 dBc Max
OP1dB: 37 dBm Min,
38 dBm Typ
OIP3: 45 dBm Min, 50 dBm Typ
Reverse Isolation: 20 dB Min, 25 dB Typ
Gain Variation Over Temperature: ±0.5 dB Typ, ±1.0 dB Max
Environmental Ratings:
Operating Temperature: -45 °C to +65 °C
Non-Operating Temperature: -55 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
