PEC-13-20M6G-3R0-20-12-SFF-EVAL Active

Low Noise Amplifier

Test Report

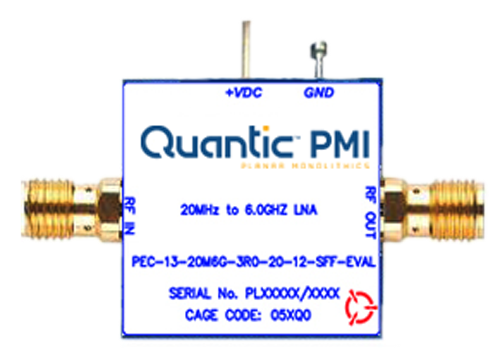

Quantic PMI Model PEC-13-20M6G-3R0-20-12-SFF-EVAL is a 0.02 to 6 GHz, Low Noise Amplifier that offers 13 dB of gain with a gain flatness of ±1.5dB. This model offers and OP1dB of 20 dBm and a typical noise figure of 3 dB.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.02 to 6
Frequency Min (GHz): 0.02
Frequency Max (GHz): 6
Gain (dB): 13 dB Typ
Gain Flatness: ±1.37 dB Typ, ±1.5 dB Max
Noise Figure (dB): 3 dB Typ
OP1dB (dBm): 20 dBm Typ
DC Voltage (VDC): +4.2 VDC
DC Current (mA): 106 mA Typ
Impedance: 50 Ohm
Input Power: 15 dBm
Return Loss In/Out: 8.99 dB Typ (Input)
9.65 dB typ (Output)
Connectors: SMA Female - removable
Environmental Ratings:
Temperature: -40 ºC to +85 ºC Operating
-50 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
