PEC-13-20M6G-3R0-20-12-SFF Active

Low Noise Amplifier

Product Feature

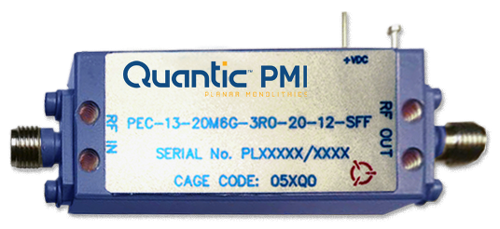

Quantic PMI Model PEC-13-20M6G-3R0-20-12-SFF is a 0.02 to 6 GHz, Low Noise Amplifier with a gain of 13 dB with a typical gain flatness of ±1.5 dB, a typical OP1dB of 20 dBm. Housing size is 2.68" x 0.78" x 0.36" with SMA Female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.02 to 6
Frequency Min (GHz): 0.02
Frequency Max (GHz): 6
Gain (dB): 13 dB Typ
Gain Flatness: ±1.5 dB Typ
Noise Figure (dB): 4 dB Typ @ 0.02 GHz,
2 dB Typ @ 0.5 GHz,
2.5 dB Typ @ 2 GHz,
3.8 dB Typ @ 6 GHz
OP1dB (dBm): 20 dBm Min
VSWR In/Out: 2.0:1 Typ
DC Voltage (VDC): +15 VDC Nom
DC Current (mA): 120 mA
Input Power: 15 dBm CW Max
Connectors: SMA Female - removable
Size: 2.68" x 0.78" x 0.36"
Finish: Painted Blue (Mounting Surface Unpainted)
Environmental Ratings:
Temperature: -40 ºC to +85 ºC Operating
-50 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
