PEC-12-50M40G-4R0-15-292FF Active

Broadband Low Noise Amplifier

Product Feature

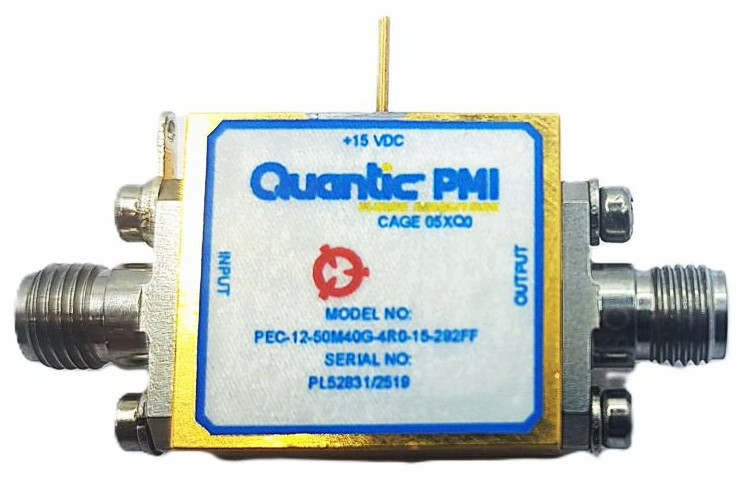

Quantic PMI Model PEC-12-50M40G-4R0-15-292FF is an amplifier operating over the 0.05 to 40 GHz frequency range. This model offers 10 dB minimum while maintaining a maximum flatness of ±2.5 dB. Package size is 0.83" x 0.75" x 0.37" with removable 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.05 to 40
Frequency Min (GHz): 0.05
Frequency Max (GHz): 40
Gain (dB): 10 dB Min
Gain Flatness: ±2.5 dB Max
Noise Figure (dB): 8.5 dB Max (0.05 to 0.5 GHz),
5.5 dB Max (0.5 to 31 GHz),
8.5 dB Max (31 to 40 GHz)
OP1dB (dBm): 13 dBm Min
VSWR In/Out: IN: 2.8:1 Max (0.1 to 40 GHz)
OUT: 2.8:1 Max (0.05 to 35 GHz),
3.3:1 Max (35 to 40 GHz)
DC Voltage (VDC): +12 VDC
DC Current (mA): 300 mA Max
Connectors: 2.92mm Female
Size: 0.83" x 0.75" x 0.37"
Finish: Painted Blue
Environmental Ratings:
Temperature: 0 °C to +85 °C (Operating)
-65 °C to +125 °C (Storage)
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
