PEC-12-1G-15-NMF Active

Low Noise Amplifier

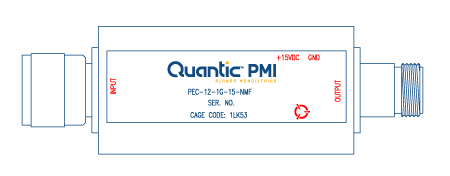

PEC-12-1G-15-NMF
Product Feature

Quantic PMI Model PEC-12-1G-15-NMF is a low noise amplifier with an operating over the 0.8 to 1.215 GHz frequency range that offers a typical gain of 12 dB while maintaining a maximum noise figure of 4 dB. This compact model is outfitted with Type N connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Min (GHz): 0.8
Frequency Max (GHz): 1.215
Gain (dB): 12 dB Min,
18 dB Max
Gain Flatness (dB): ±1 dB Max
Noise Figure (dB): 4 dB Max
VSWR In/Out: 2.0:1 Typ
OP1dB (dBm): 15 dBm Min
DC Voltage: +15 VDC
DC Current Draw: 100 mA Max
Connectors: N-Type Female
Export Classification (ECCN): EAR99
