PEC-10M1D5G-30-10-13-SFF
Preliminary
Low Noise Amplifier

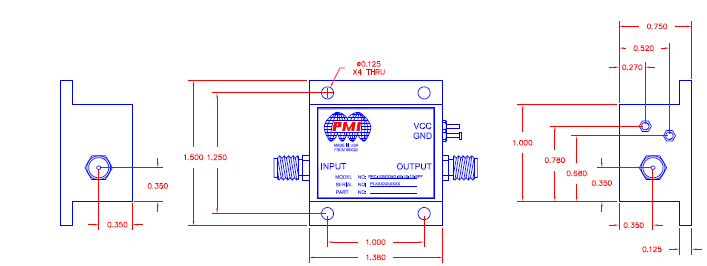

Quantic PMI Model PEC-10M1D5G-30-10-13-SFF is a medium power amplifier operating between the frequency range of 0.01 to 1.5 GHz with a typical noise figure of 3 dB and a typical gain of 40 dB. Package size is 2.68" x 0.58" 0.36" with removable SMA connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 01 to 1.5 |
|---|
| Frequency Min (GHz): | 0.01 |
|---|
| Frequency Max (GHz): | 1.5 |
|---|
| Gain (dB): | 40 dB Typ,
36 dB Min |
|---|
| VSWR In/Out: | 1:1.4/ 1:1.6 |
|---|
| OP1dB (dBm): | 15 dB Max @ 1 dB Compression |
|---|
| RF Input Power: | 13 dB Max |
|---|
| DC Voltage: | +12 VDC |
|---|
| DC Current Draw: | 115 mA Max |
|---|
| Connectors: | SMA Female |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 ºC to +75 ºC |
|---|
| Temperature (Non-Operating): | -55 ºC to 100 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
