PEC-100M18-30-4D5-20-15-SFF Active

Buy Now

Additional Documents

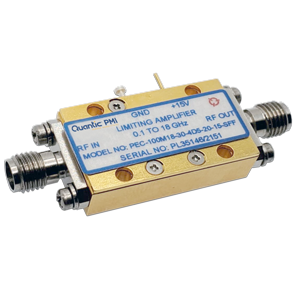

PMI Model number PEC-100M18-30-4D5-20-15-SFF is a broadband low noise amplifier covering the rf range of 0.1 to 18 GHz.

General Parameters:
Status:	Active
Frequency Range:	0.1 to 18 GHz
Frequency Min:	0.1 GHz
Frequency Max:	18 GHz
Gain:	30 dB MIN
Noise Figure:	4.5 dB MAX(not guaranteed below 700 MHz)
Gain Flatness:	±2 dB MAX
OP1dB:	+20 dBm MIN
VSWR In/Out:	2.4:1 MAX 2.3:1 MAX
DC Voltage Supply:	+15 VDC
DC Current Draw:	450 mA typ.
Power Supply:	+15V @ 350 mA nom.
P1dB:	+20 dBm MIN
Environmental Ratings:
Temperature (Operating):	-55 to 85 °C
