PEAFS3-14-10M22G-292FF Active

Ultra Low Noise Amplifier

Buy Now
Product Feature

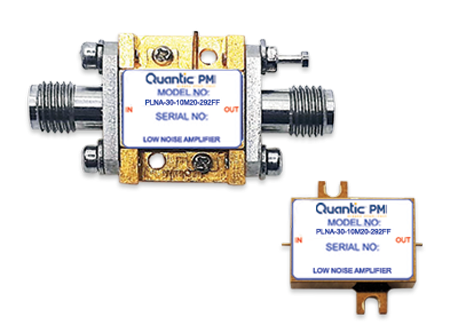

Quantic PMI Model PEAFS3-14-10M22G-292FF is a very low noise amplifier with working frequency range of 0.01 to 22 GHz that offers 14 dB gain with a 3 dB typical noise figure and a gain flatness of ±0.8 dB maximum. This amplifier is supplied with 2.92mm connectors in a housing that measures 0.53" x 0.70" x 0.26" which can be used as a surface mount or connectorized component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.01 to 22
Frequency Min (GHz): 0.01
Frequency Max (GHz): 22
Gain (dB): 14 dB Typ
Gain Flatness: ±0.8 dB Max
Noise Figure (dB): 3 dB Typ (0.02 to 0.5 GHz),
2.5 dB Typ (0.5 to 18 GHz),
3.4 dB Typ (18 to 22 GHz)
OP1dB (dBm): 14 dBm Typ (0.01 to 18 GHz),
13 dBm Typ (18 to 22 GHz)
Psat (dBm): 16 dBm Typ (0.01 to 18 GHz),
15 dBm Typ (18 to 22 GHz)
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +3.3 VDC @ 50 mA Max
DC Current (mA): 50 mA
Input Power: 20 dBm Max
Reverse Isolation: 19 dB Typ (0.01 to 18 GHz)
20 dB Typ (18 to 22 GHz)
OIP3: 25 dBm Typ (0.01 to 20 GHz),
20 dBm Typ (20 to 22 GHz)
Connectors: 2.92mm Female - removeable
Size: 0.53" x 0.70" x 0.26"
Finish: Gold Plated
DC Supply: +3.3 VDC @ 50 mA Max
Environmental Ratings:
Temperature: -40 °C to + 85 °C (Operating)
-40 °C to +100 °C (Storage)
Humidity: MIL-STD-202F, METHOD 103B COND B.
Shock: MIL-STD-202F, METHOD 213B COND B.
Altitude: MIL-STD-202F, METHOD 105C COND B.
Temperature Cycle: MIL-STD-202F, METHOD 107D COND A.
