PEAFS3-14-100M6G-SFF Active

Low Noise Amplifier

Product Feature
Additional Documents

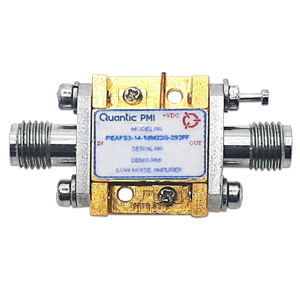

Quantic PMI Model PEAFS3-14-100M6G-SFF is a very low noise amplifier with working frequency range of 0.1 to 6 GHz that offers 14 dB gain with a 2.5 dB typical noise figure and a gain flatness of ±0.8 dB maximum.  Package measures 0.53" x 0.70" x 0.26" that can be used as a SMA connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.1 to 6
Frequency Min (GHz): 0.1
Frequency Max (GHz): 6
Gain (dB): 14 dB Typ
Gain Flatness: ±0.8 dB Max
Noise Figure (dB): 3 dB Max,
2.5 dB Typ
OP1dB (dBm): 14 dBm Typ,
12 dBm Min
Psat (dBm): 16 dBm Typ,
14 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +10 to +15 VDC
DC Current (mA): 50 mA Max
Reverse Isolation: 18 dB Min,
20 dB Typ
OIP3: 24 dBm Typ,
22 dBm Min
Connectors: SMA Female
Size: 0.53" x 0.70" x 0.26"
Finish: Gold Plated
DC Supply: +10 to 15 VDC @ 50mA Max
Environmental Ratings:
Temperature (Operating): -40°C to+ 85°C
Temperature (Storage): -40°C to +100°C
Humidity: MIL-STD-202F, METHOD 103B COND B
Shock: MIL-STD-202F, METHOD 213B COND B
Altitude: MIL-STD-202F, METHOD 105C COND B
Temperature Cycle: MIL-STD-202F, METHOD 107D COND A
