PEAFS3-14-0R2535R0-6R5-23-12-292FF Active

Low Noise Amplifier - Dual use Connectorized or Surface Mount

Product Feature

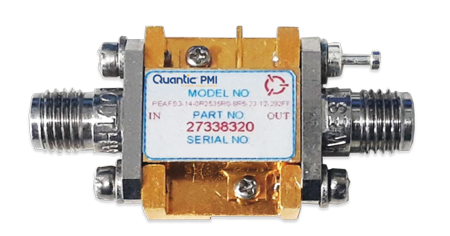

Quantic PMI Model Number: PEAFS3-14-0R2535R0-6R5-23-12-292FF is a 0.25 to 35 GHz low noise amplifier with a gain of 14 dB, a gain flatness of 1.5 dB, a noise figure of 6.5 dB, an OP1dB of 23 dB, and a VSWR of 2.0:1. This model has 2.92mm female connectors and a size of 0.53" x 0.70" x 0.26".  Dual use connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Min: 0.25 GHz
Frequency Max: 35 GHz
Gain: 14 dB Typ
Gain Flatness: 1.5 dB Max
Noise Figure: 6.5 dB
VSWR In/Out: 2.0:1
DC Voltage Supply: + 12 to 15 VDC
DC Current Draw: 300 mA Typ
OP1dB: 23 dBm Min
OIP3: 35 dBm Min
PSAT: 28 dBm
Input Power: 25 dBm CW Max
Reverse Isolation: 45 to 25 dB
Connectors In/Out: 2.92mm Female removable
Finish: Gold
Size: PEAFS3 - PMI Standard Package
0.53” x 0.70” x 0.26”
Environmental Ratings:
Temperature: -40 °C to +85 °C (Operating)
Humidity: MIL-STD-202F, METHOD 103B COND B.
Shock: MIL-STD-202F, METHOD 213B COND B.
Altitude: MIL-STD-202F, METHOD 105C COND B.
Temperature Cycle: MIL-STD-202F, METHOD 1070 CONDA
