PEAFS3-13-618-6R5-23-12-SFF Active

Low Noise Amplifier

PEAFS3-13-618-6R5-23-12-SFF
Product Feature

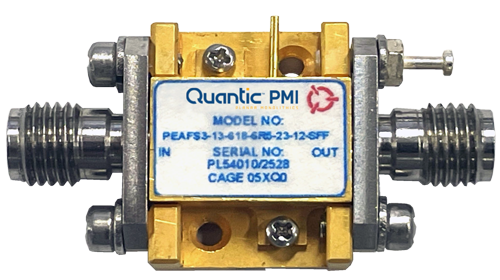

Quantic PMI Model PEAFS3-13-618-6R5-23-12-SFF is a 6 to 18 GHz low noise amplifier with a gain of 13 dB, a gain flatness of ±1 dB, a noise figure of 5 dB, an P1dB 23 dB, and a VSWR of 2.0:1. This model has SMA female connectors and a size of 0.53" x 0.7" x 0.26".  Dual use connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Min (GHz): 6
Frequency Max (GHz): 18
Gain (dB): 13 dB Typ
Gain Flatness: ±1 dB Max
Noise Figure (dB): 4 dB Typ,
5 dB Max
OP1dB (dBm): 23 dBm Min
Psat (dBm): 28 dBm Typ
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 300 mA Typ (Iq)
Input Power: 25 dBm CW Max
Reverse Isolation: 45 to 25 dB Typ
P1dB Compression Point: 23 dB
OIP3: 35 dBm Typ
Connectors: SMA Female - removable
Size: PEAFS3 - PMI Standard Package
0.53” x 0.70” x 0.26”
Finish: Gold
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature: -40 °C to +85 °C (Operating)
Humidity: MIL-STD-202F, METHOD 103B COND B.
Shock: MIL-STD-202F, METHOD 213B COND B.
Altitude: MIL-STD-202F, METHOD 105C COND B.
Temperature Cycle: MIL-STD-202F, METHOD 1070 CONDA
