PEAFS3-12-218-15-SFF-1 Active

Low Noise Amplifiers

Product Feature

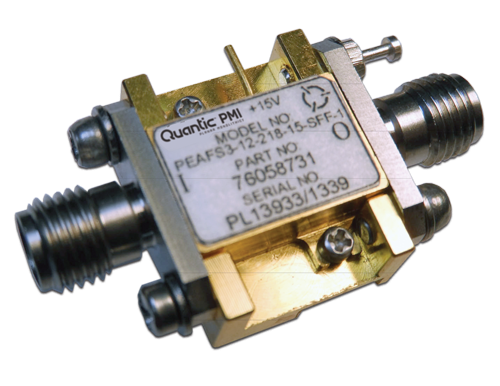

Quantic PMI Model PEAFS3-12-218-15-SFF-1 is a 2 to 18 GHz low noise amplifier that provides 15 to 22 dB of gain with a noise figure is 5 dB from 2 to 4 GHz and 4.1 dB at 4 to 18 GHz and offers an OP1dB of 9 dBm. The operating voltage is +15 VDC and the current draw is 180 mA. This unit is supplied with removable SMA (F) connectors in a gold plated housing that measures 0.53" x 0.36" x 0.18".

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 18
Frequency Min (GHz): 2
Frequency Max (GHz): 18
Gain (dB): 15 dB Min,
22 dB Max
Gain Flatness: ±2.0 dB Max (2 to 18 GHz),
±0.75 dB Max (0.5 GHz Bandwidth at any frequency)
Noise Figure (dB): 5 dB Max
OP1dB (dBm): 9 dBm Min
DC Voltage (VDC): +15 VDC (±5%)
DC Current (mA): 180 mA Max
Input Power: 5 dBm CW
Return Loss In/Out: 9.5 dB Min
Connectors: SMA Female - removable
Housing: 0.53" x 0.36" x 0.18"
Finish: Gold Plated
Environmental Ratings:
Temperature: -54 ºC to +95 ºC Operating,
-62 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 106F
Shock: MIL-STD-202F, Method 213B Cond. A
Vibration: MIL-STD-202F, Method 105C Cond. C
Altitude: MIL-STD-202F, Method 214A Cond. H
Temperature Cycle: MIL-STD-202F, Method 107G
