PE2152518R515SFFLM Active

Product Feature

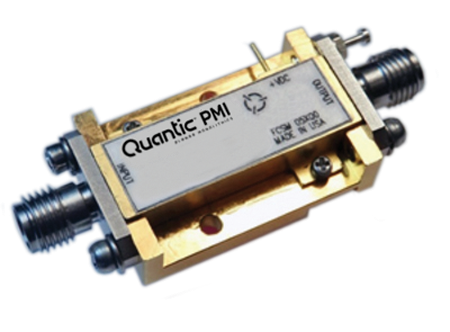

PMI Model No. PE2152518R515SFFLM is a low noise amplifier.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 0.25 to 18.5 GHz
Frequency Min: 0.25 GHz
Frequency Max: 18.5 GHz
Gain: +15 dB nominal
Noise Figure: 6.5 dB max.
Gain Flatness: ±1.5 dB max.
OP1dB: 16 dBm min.
VSWR In/Out: 2.3:1 max.
DC Voltage Supply: +15 VDC
DC Current Draw: 300 mA max.
Connectors In/Out: SMA (F)
Environmental Ratings:
Temperature (Operating): -55°C to +85°C
Temperature (Storage): -65°C to +125°C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
