PE2-618-20-4D5-14-SFF Active

Low Noise Amplifier

Product Feature

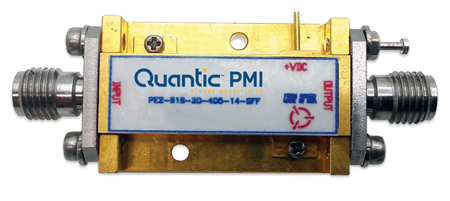

Quantic PMI Model PE2-618-20-4D5-14-SFF is a Low Noise Amplifier designed for military and industrial applications that operates over 6 to 18 GHz frequency range with a gain of 18 dB; noise figure of 4.5 dB; gain flatness of ±1 dB with an OP1dB of 3 dBm. Supplied in our PE2 housing that can be used as an SMA connectorized or surface mounted component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 6 to 18
Frequency Min (GHz): 6
Frequency Max (GHz): 18
Gain (dB): 18 dB Min, 19 dB Typ
Gain Flatness: ±1.0 dB Typ
Noise Figure (dB): 4.5 dB Max
OP1dB (dBm): 3 dBm Min, 5 dBm Typ
VSWR In/Out: 2:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 150 mA Typ
Connectors: SMA female - removable
Housing: PE2
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
