PE2-60-8R018R0-3R5-22-12-SFF Preliminary

Low Noise Amplifier

Product Feature

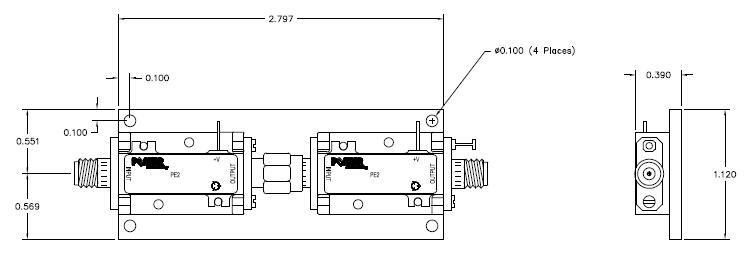

Quantic PMI Model PE2-60-8R018R0-3R0-14-12-SFF is a 8 to 18 GHz low noise amplifier that offers a gain of 60 dB and a gain flatness of ±1.5 dB with a noise figure of 3.5 dB and a OP1dB of 22 dBm.  Supplied in a standard PE2 housing that can be used as a SMA connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 8 to 18
Frequency Min (GHz): 8
Frequency Max (GHz): 18
Gain (dB): 60 dB Typ
Gain Flatness: ±1.5 dB Max
Noise Figure (dB): 3.5 dB Typ
OP1dB (dBm): 22 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 430 mA Max
Connectors: SMA Female - removable
Environmental Ratings:
Temperature: -40 ºC to +85 ºC Operating,
-40 ºC to +100 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
