PE2-60-2G8G-2R5-20-12-SFF Active

Low Noise Amplifier

Product Feature

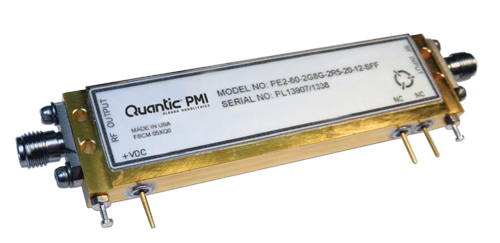

Quantic PMI Model PE2-60-2G8G-2R5-20-12-SFF is a 2 to 8 GHz low noise amplifier which produces 60 dB of gain with a maximum noise figure of 2.5 dB with a OP1dB is 20 dBm and the VSWR is 2.0:1 maximum. This amplifier operates on a DC voltage supply of +12 to +15 VDC and the current draw is 475 mA maximum. The housing measures 2.98” x 0.78” x 0.26” and is supplied with SMA Female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 8
Frequency Min (GHz): 2
Frequency Max (GHz): 8
Gain (dB): 60 dB Nom
Gain Flatness: ±1.5 dB Max
Noise Figure (dB): 2.5 dB Max
OP1dB (dBm): 20 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 to +15 VDC @ 475 mA Max
Connectors: SMA Female - removable
Size: 2.98" x 0.78" x 0.26"
Finish: Gold Plated
Environmental Ratings:
Temperature: -40 ºC to +85 ºC Operating,
-55 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
