PE2-60-1R01R5-4R5-15-12-SFF Preliminary

Product Feature

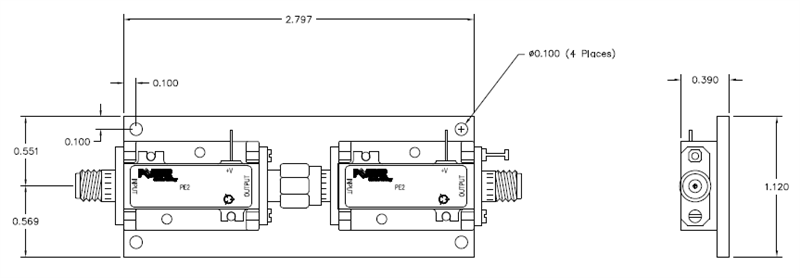

Low noise amplifier designed for military and industrial applications. This amplifier is supplied in our standard PE2 housing that can be used as a SMA connectorized or surface mount component. Other packages and connector types are available.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Min: 1 GHz
Frequency Max: 1.5 GHz
Gain: 60 dB Typ
Gain Flatness: ±0.75 dB Max
Noise Figure: 4.5 dB Typ
Frequency Range: 1.0 to 1.5 GHz
VSWR In/Out: 2.0:1 Max
OP1dB: 15 dBm Min
DC Voltage: +12 to +15 VDC
DC Current Draw: 280 mA Max
Environmental Ratings:
Operating Temperature: -40 ºC to +85 ºC
Non-Operating Temperature: -40 ºC to +100 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
