PE2-60-0R58R0-4R75-15-12-SFF Preliminary

Low Noise Amplifier

Product Feature

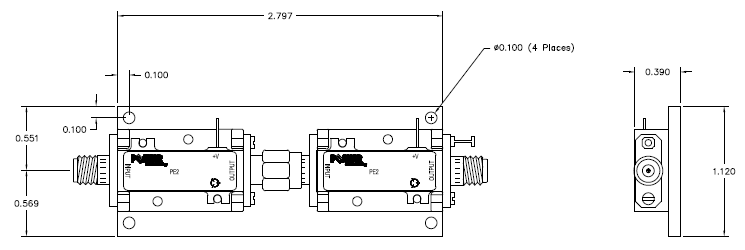

Quantic PMI Model PE2-60-0R58R0-4R75-15-12-SFF is a 0.5 to 8 GHz Low Noise Amplifier that provides 60 dB of gain while maintaining a maximum gain flatness of ±1.25 dB maximum over the operating frequency with a noise figure of 4.75 dB and offers an OP1dB of 15 dBm minimum. Overall housing size measures 2.797” x 1.12” x 0.39”.  Individual amplifiers are supplied in our PE2  housing that can be used as an SMA connectorized or surface mounted component.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.5 to 8
Frequency Min (GHz): 0.5
Frequency Max (GHz): 8
Gain (dB): 60 dB Typ
Gain Flatness: ±1.25 dB Max
Noise Figure (dB): 4.75 dB Typ
OP1dB (dBm): 15 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 280 mA Max
Connectors: SMA Female - removable
Size: 2.797” x 1.12” x 0.39”
Housing: PE2
Environmental Ratings:
Temperature: -40 ºC to +85 ºC Operating,
-40 ºC to +100 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
