PE2-45-8R012R0-1R0-14-12-SFF Active

Low Noise Amplifier

Product Feature

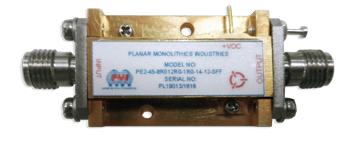

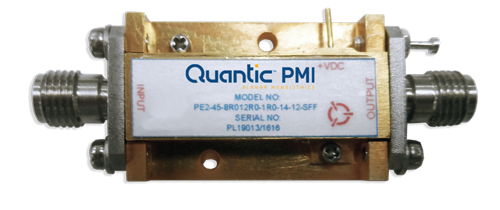

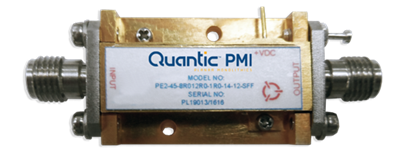

Quantic PMI Model PE2-45-8R012R0-1R0-14-12-SFF is an 8 to 12 GHz, Low Noise Amplifier which provides 45 dB of gain typically while maintaining a Maximum gain flatness of ±2 dB over the operating frequency with typical noise figure is 1 dB and offers an OP1dB of 12 dBm.  Supplied in our PE2  housing that can be used as an SMA connectorized or surface mounted component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 8 to 12
Frequency Min (GHz): 8
Frequency Max (GHz): 12
Gain (dB): 45 dB Typ
Gain (dB) - Measured: 45 dB Typ - Measured 46 dB
Gain Flatness (dB): ±2 dB Max
Gain Flatness (Measured): ±2 dB Max - Measured ±1.3 dB
Noise Figure (dB): 1 dB Typ
OP1dB (dBm): 12 dBm Min
VSWR In/Out: 2.2:1 Max - Measured 1.9:1 / 1.7:1
DC Voltage Supply (VDC): +12 to +15 VDC
DC Current Draw: 200 mA Nom - Measured 384 mA
Connectors: SMA Female - removable
Size: 1.8" x 0.71" x 0.29"
Housing: PE2
Environmental Ratings:
Temperature (Operating): -40 ºC to +85 ºC
Temperature (Non-Operating): -40 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
