PE2-45-1R018R0-4R5-22-12-SFF Active

Low Noise Amplifier

Product Feature

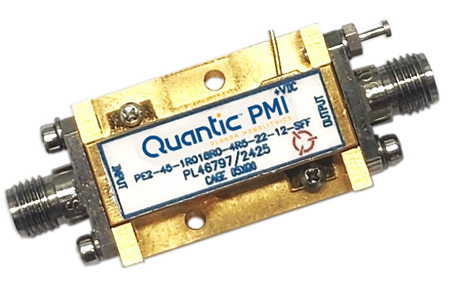

Quantic PMI Model PE2-45-1R018R0-4R5-22-12-SFF is a 1 to 18 GHz Low noise amplifier designed for military and industrial applications that provides 41 dB gain with a gain flatness of ±1.5 dB and a noise figure of 4.5 dB. This amplifier is supplied in our standard PE2 housing that can be used as a SMA connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 18
Frequency Min (GHz): 1
Frequency Max (GHz): 18
Gain (dB): 45 dB Typ,
41 dB Min
Gain Flatness: ±1.5 dB Max
Noise Figure (dB): 4.5 dB Typ,
5 dB Max
OP1dB (dBm): 20 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 385 mA
Connectors: SMA Female - removable
Housing: PE2
Environmental Ratings:
Temperature: -54 ºC to +85 ºC Operating,
-65 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
