PE2-45-1R018R0-4R5-15-12-SFF Active

Low Noise Amplifier

Product Feature

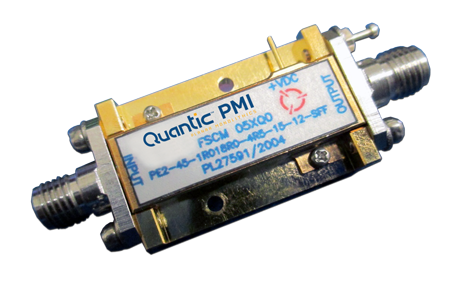

Quantic PMI Model PE2-45-1R018R0-4R5-15-12-SFF is a 1 to 18 GHz, low noise amplifier which typically provides 45 dB of gain with a typical gain flatness of ±1.5 dB over the operating frequency. The maximum noise figure is 5 dB and offers a minimum OP1dB of 15 dBm. Supplied in our standard PE2 housing (1.08" x 0.71" x 0.26") that can be used as a SMA connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 18
Frequency Min (GHz): 1
Frequency Max (GHz): 18
Gain (dB): 45 dB Typ
Gain Flatness: ±1.5 dB Typ,
±1.75 dB Max
Noise Figure (dB): 5 dB Max
OP1dB (dBm): 15 dBm Min
Psat (dBm): 15 dBm Min @ 18 GHz
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 240 mA Typ
Connectors: SMA Female - removable
Housing: PE2
Finish: Gold Plated
Output Power: 17 ± 2.5 dBm Typ (-25 to +3 dBm Input)
Environmental Ratings:
Temperature: -55 ºC to +85 ºC Operating,
-65 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
