PE2-42-5D6G18G-4R0-19-15-SFF Preliminary

Low Noise Amplifier

Product Feature

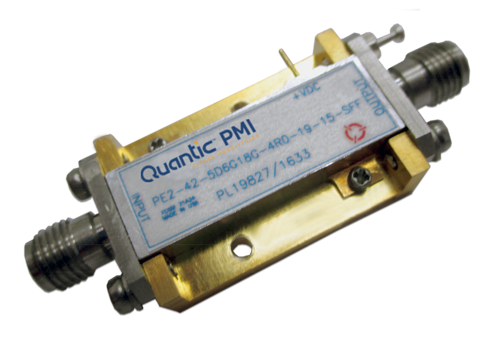

Quantic PMI Model PE2-42-5D6G18G-4R0-19-15-SFF is a low noise amplifier that operates over the 5.6 to 18 GHz frequency range that provides a minimum 42 dB while maintaining a maximum gain flatness of ±2.5 dB over the operating frequency. The typical noise figure is 4 dB and the unit operates on +12 to +15 VDC with a typical current draw of 400 mA. Supplied in our PE2 housing that can be used as an SMA connectorized or surface mounted component.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 5.6 to 18
Frequency Min (GHz): 5.6
Frequency Max (GHz): 18
Gain (dB): 42 dB Min, 48 dB Max
Gain (Measured): 42 dB Min, 48 dB Max - Measured 44.2 dB
Gain Flatness: ±2.5 dB Typ - Measured ±1.4 dB
Noise Figure (dB): 4 dB Typ
Noise Figure (Measured): 4 dB Typ, 5 dB Max - Measured 4.23 dB
OP1dB (dBm): 19 dBm Min
VSWR In/Out: 2.0:1/ 2/0:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 400 mA Typ - Measured 380 mA
Input Power: 20 dBm CW Max
RF Leakage Levels: 60 dBc
OIP3: 27 dBm Typ - Measured 30.8 dBm
Connectors: SMA Female - removable
Housing: PE2
Finish: Gold Plated
Environmental Ratings:
Temperature: -40 ºC to +85 ºC Operating,
-55 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
