PE2-34-2G18G-3R5-15-SFF-VVG-DD-OPT512 Active

Voltage Variable Gain Amplifier with Integrated Diode Detector

Product Feature

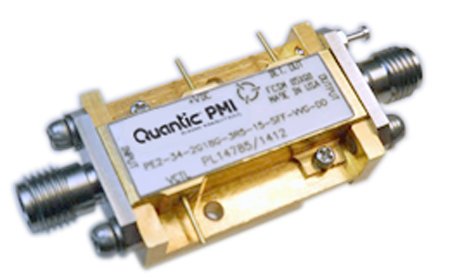

Quantic PMI Model PE2-34-2G18G-3R5-15-SFF-VVG-DD-OPT512 is a voltage variable gain amplifier with integrated diode detector that operates over the frequency range 2 to 18 GHz but is optimized over 5 to 12 GHz (Option 512) that provides a gain of 12  to 15 dB with a gain flatness of ±1.5 dB and a noise figure of  3.5 dB. Supplied in our standard PE2 housing that can be used as SMA connectorized or as a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 5 to 12 (Optimized),
2 to 18 (Operating)
Frequency Min (GHz): 5 (Optimized),
2 (Operating)
Frequency Max (GHz): 12 (Optimized),
18 (Operating)
Gain (dB): 30 dB Min
Gain Flatness (dB): ±1 dB Goal,
±1.5 dB Max
Noise Figure (dB): 3.5 dB Max
OP1dB (dBm): 13 dBm Min
VSWR In/Out: 2:1 Max
Control Voltage: 0 to +5 VDC (0 V = Max Gain)
DC Voltage Supply (VDC): +12 to +15 VDC
DC Current Draw: 280 mA
Input Power: 18 dBm Max
Connectors: SMA Female
Size: 1.08" x 0.71" x 0.29"
Housing: PE2
Finish: Gold Plated
Environmental Ratings:
Temperature: -55 °C to +85 °C (Operating),
-65 °C to +125 °C (Non-Operating)
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
