PE2-32-7G9G-4R0-21-SFF Active

Low Noise Amplifier

Product Feature

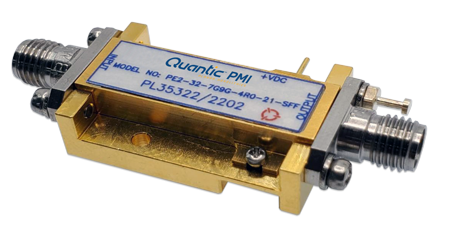

Quantic PMI Model PE2‐32‐7G9G‐4R0‐21‐SFFis a low noise amplifier with an operating frequency range of 7 to 9 GHz that offers a typical gain of 32 dB and a noise figure of 2 dB.  This amplifier is supplied in our standard PE2 housing that measures 1.08" x 0.71" x 0.32" and has SMA female connectors.  Dual use can be used as a surface mount or connectorized component.

Product Specifications

General Parameters:
Status: Active
Frequency Min (GHz): 7
Frequency Max (GHz): 9
Gain (dB): 32 dB Nom
Gain Flatness (dB): ±1.25 dB Typ
Noise Figure (dB): 4 dB Max
VSWR In/Out: 1.8:1 Max
OP1dB (dBm): 21 dBm Min
DC Voltage: +12 to +15 VDC
DC Current Draw: 300 mA Typ
Connectors: SMA Female - removable
Size: 1.08" x 0.71" x 0.32"
Housing: PE2
Environmental Ratings:
Temperature (Operating): -55 °C to 85 °C
Temperature (Non-Operating): -55 °C to +125 °C
