PE2-30-8G12G-6DB-10DBM-12V-SFF Preliminary

Low Noise Amplifier

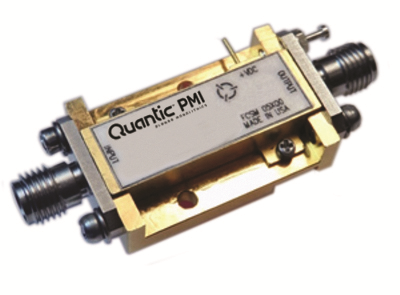

Quantic PMI Model PE2-30-8G12G-6DB-10DBM-12V-SFF is a Low Noise Amplifier that operates over the 8 to 12 GHz frequency range. Designed for military and industrial applications, this unit offers +29 dB to +31 dB of gain while maintaining a noise figure below 6 dB. The unit is supplied in our standard PE2 housing with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 8 to 12 GHz
Frequency Min (GHz): 8
Frequency Max (GHz): 12
Gain (dB): 29 dB Min
31 dB Max
Gain Flatness: ± 1 dB Max over frequency
8.5 dB peak to peak over temperature
Noise Figure (dB): 6 dB Max
OP1dB (dBm): 10 dBm Max
VSWR In/Out: 2:1 Max
DC Voltage (VDC): 12 ± 3 VDC
DC Current (mA): 200 mA Max
Connectors: SMA female - removable
Housing: PE2
Environmental Ratings:
Temperature (Operating): -20 °C to +71 °C
Temperature (Storage): -55 °C to +85 °C
Humidity: MIL-E-5400R 3.2.24
Shock: MIL-E-5400R 3.2.24.6.1
Vibration: MIL-E-5400R 3.2.24.5 Figure 2 Curve 3
Altitude: 0 to 3, 200 m (10, 500 ft)
