PE2-30-2R04R0-1R5-21-8V-SFF Active

Low Noise Amplifier

PE2-30-2R04R0-1R5-21-8V-SFF
Product Feature
Additional Documents

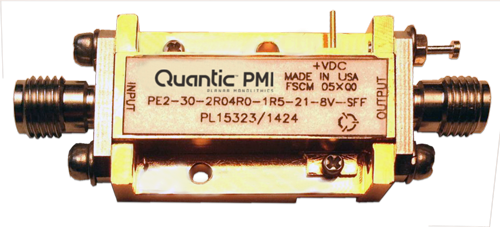

Quantic PMI Model PE2-30-2R04R0-1R5-21-8V-SFF is a 2 to 4 GHz, Low Noise Amplifier that typically provides 30 dB of gain while maintaining a maximum gain flatness of ±1 dB over the operating frequency with a typical noise figure is 1.5 dB.   Supplied in our PE2  housing that can be used as an SMA connectorized or surface mounted component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 4
Frequency Min (GHz): 2
Frequency Max (GHz): 4
Gain (dB): 30 dB Typ
Gain Flatness (dB): ±1 dB Max
Noise Figure (dB): 1.5 dB Typ
OP1dB (dBm): 21 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage Supply (VDC): +8 VDC
DC Current Draw: 300 mA Nom
Connectors: SMA Female - removable
Size: 1.8" x 0.71" x 0.29"
Housing: PE2
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -20 ºC to +70 ºC
Temperature (Non-Operating): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
