PE2-30-2R018R0-4R5-22-12-SFF Active

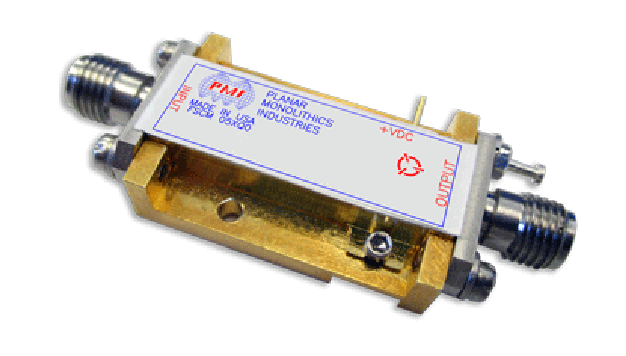

Low noise amplifier designed for military and industrial applications. This amplifier is supplied in our standard PE2 housing that can be used as a SMA connectorized or surface mount component. Other packages and connector types are available.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2.0 to 18.0 GHz
Frequency Min (GHz): 2
Frequency Max (GHz): 18
Gain (dB): 30 dB Typ
Gain Flatness: ±1.5 dB Max
Noise Figure (dB): 4.5 dB Typ
OP1dB (dBm): 22 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 325 mA Max
Connectors: SMA Female - removable
Environmental Ratings:
Temperature: -20 °C to +70 °C Operating, -55 °C to +85 °C Available Operating, -55 °C to +125 °C Non-Operating
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 120B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
