PE2-30-2040-5R0-10-15-292FF-ROHS Active

Low Noise Amplifier

Product Feature

Quantic PMI Model PE2-30-2040-5R0-10-15-292FF-ROHS is a low noise amplifier designed for military and industrial applications that provides a gain of 30 dB; noise figure of 5 dB; gain flatness of ±2 dB with an OP1dB of 10 dBm. This amplifier is supplied in our standard PE2 housing that can be used as a 2.92mm connectorized or a surface mount component.  RoHs complaint.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 20 to 40
Frequency Min (GHz): 20
Frequency Max (GHz): 40

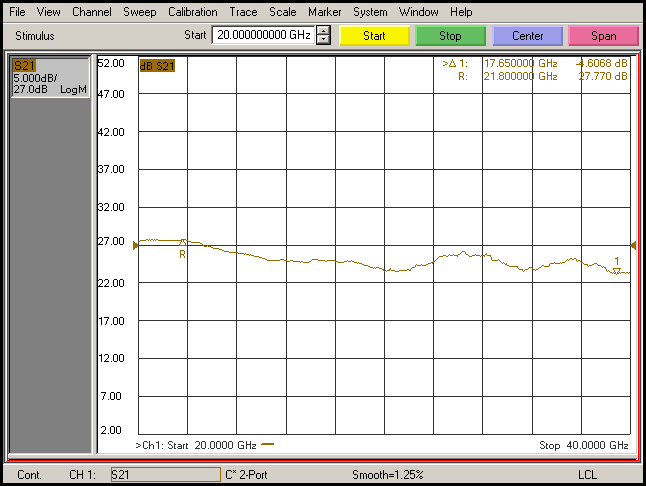

Gain (dB): 30 dB Typ
Gain Flatness: ±2.0 dB Max
Noise Figure (dB): 5 dB Typ
OP1dB (dBm): 10 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 to +15 VDC
Connectors: 2.92mm Female - removable
Size: 1.08" x 0.71" x 0.29" (Excluding Connectors)
Housing: PE2
Finish: Gold Plated
Environmental Ratings:
Temperature: -20 °C to +70 °C (Operating)
-65 °C to +125 °C (Storage)
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
