PE2-30-1R06R0-1R5-22-12-SFF Active

Low Noise Amplifier

Product Feature

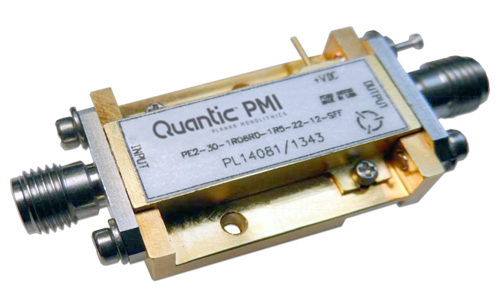

Quantic PMI Model PE2-30-1R06R0-1R5-22-12-SFF is a 1 to 6 GHz, low noise amplifier that provides 30 dB of gain typically with a noise figure is 1. 8dB and offers an OP1dB of 22 dBm. The operating voltage is +12 to +15 VDC and the current draw is 320 mA. Supplied in our PE2 housing that can be used as an SMA connectorized or surface mounted component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 6
Frequency Min (GHz): 1
Frequency Max (GHz): 6
Gain (dB): 30 dB Typ
Gain Flatness: ±1.5 dB Max
Noise Figure (dB): 1.8 dB Typ
OP1dB (dBm): 22 dBm Typ
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 320 mA Typ
Connectors: SMA Female - removable
Housing: PE2
Environmental Ratings:
Temperature: -55 ºC to +85 ºC Operating,
-65 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
