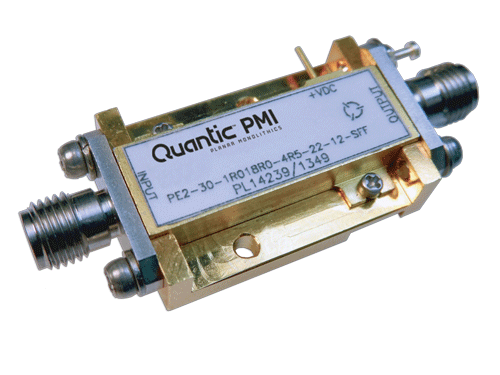

General Parameters: |
Status: | Active |
Frequency Range: | 2.0 to 20.0 GHz |
Frequency Min: | 2 GHz |
Frequency Max: | 20 GHz |
Gain: | 30 dB Typ |
Gain Flatness: | ±1.5 dB Max |
Noise Figure: | 4.5 dB Typ - Measured:, (- 55 °C), 3.5 dB, (+25 °C), 4.04 dB, (+85 °C), 4.66 dB |
VSWR In/Out: | 2.0:1 Max - Measured:, (- 55 °C), 1.7:1, (+25 °C), 1.6:1, (+85 °C), 1.6:1 |
DC Voltage Supply: | +12 to +15 |
DC Current Draw: | 325 mA Max - Measured:, (- 55 °C), 431 mA, (+25 °C), 439 mA, (+85 °C), 453 mA |
OP1dB: | 22 dBm Min - Measured:, (- 55 °C), +28.2 dBm, (+25 °C), +22 dBm, (+85 °C), +22.9 dBm |
Environmental Ratings: |
Temperature: | -40 ºC to +85 ºC Operating, -40 ºC to +100 ºC Non-Operating |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
