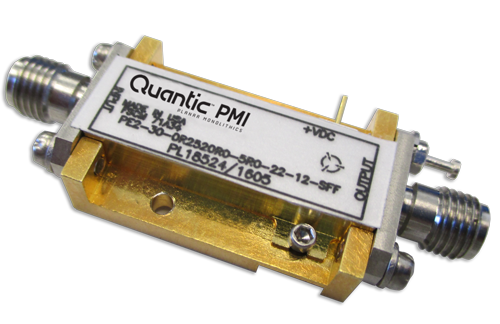

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 19 to 20 |
|---|
| Frequency Min (GHz): | 19 |
|---|
| Frequency Max (GHz): | 20 |
|---|
| Gain (dB): | 30 dB Typ |
|---|
| Gain (dB) - Measured: | 30 dB Typ - measured 26.2 dB |
|---|
| Gain Flatness (dB): | ±0.75 dB Max |
|---|
| Gain Flatness (dB) - Measured: | ±0.75 dB Max - measured ±1.36 dB |
|---|
| Noise Figure (dB): | 2.5 dB Typ |
|---|
| VSWR In/Out: | 2.0:1 - measured 1.84:1 / 1.88:1 |
|---|
| OP1dB (dBm): | 10 dBm Min |
|---|
| DC Voltage: | +12 to +15 VDC |
|---|
| DC Current Draw: | 120 mA Max - measured 400 mA |
|---|
| Connectors: | SMA Female - removable |
|---|
| Size: | 1.08" x 0.71" x 0.32" |
|---|
| Housing: | PE2 |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -20 ºC to +70 ºC |
|---|
| Temperature (Non-Operating): | -55 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
