PE2-30-0R258R0-5R0-22-12-SFF Preliminary

Low Noise Amplifier

Quantic PMI Model PE2-30-0R258R0-5R0-22-12-SFF is a low noise amplifier designed for military and industrial applications that operates over the 0.25 to 8 GHz with a 30 dB gain, a noise figure of 5 dB, gain flatness of ±1 dB and an OP1dB of 22 dBm. This amplifier is supplied in our standard PE2 housing that can be used as a SMA connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.25 to 8
Frequency Min (GHz): 0.25
Frequency Max (GHz): 8
Gain (dB): 30 dB Typ
Gain Flatness: ±1 dB Max
Noise Figure (dB): 5 dB Typ
OP1dB (dBm): 22 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 400 mA Max
Connectors: SMA Female - removable

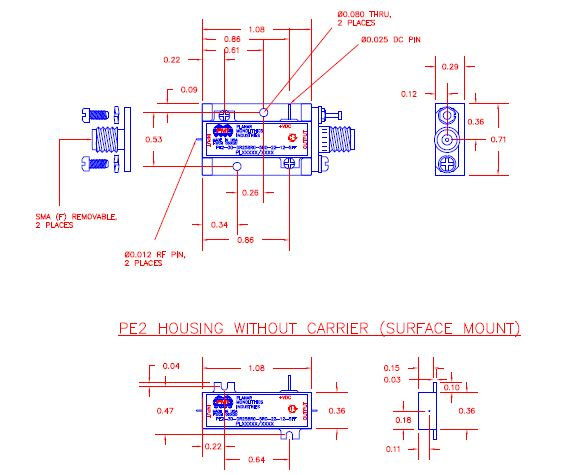

Housing: PE2
Environmental Ratings:
Temperature: -40 ºC to +85 ºC Operating
-40 ºC to +100 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
