PE2-28-6G9G-3R0-10-12-SFF Active

Low Noise Amplifier

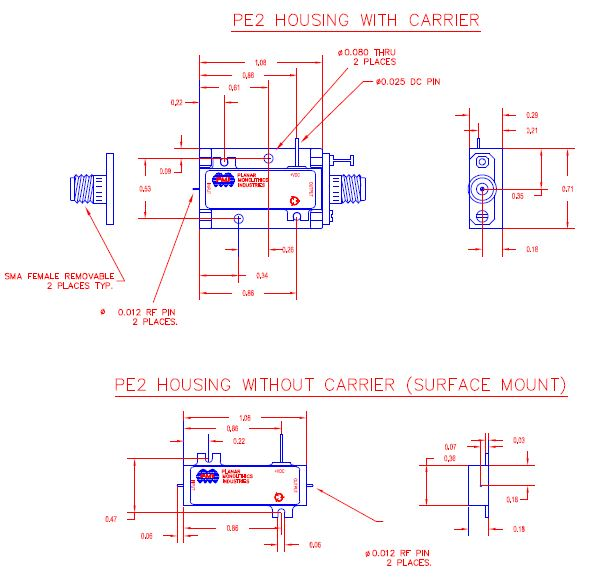

Quantic PMI Model PE2-28-6G9G-3R0-10-12-SFF is a 6 to 9 GHz low noise amplifier that offers a gain of 28 dB and a gain flatness of ±1 dB with a noise figure of 3 dB.  The unit is supplied in a standard PE2 housing that can be used as a SMA connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 6 to 9
Frequency Min (GHz): 6
Frequency Max (GHz): 9
Gain (dB): 28 dB Typ
Gain Flatness: ±1 dB Max
Noise Figure (dB): 3 dB Max
OP1dB (dBm): 10 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 200 mA Max
Connectors: SMA Female - removable
Housing: PE2
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
