PE2-28-218-5R0-12-15-SFF Active

Low Noise Amplifier

Product Feature

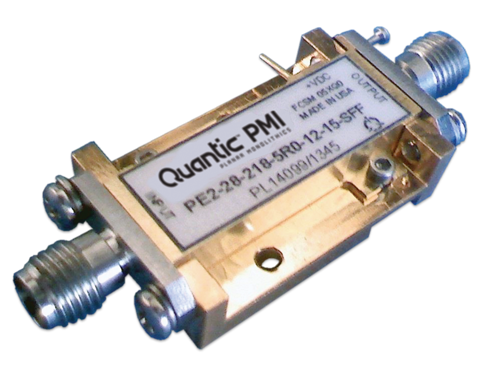

Quantic PMI Model PE2-28-218-5R0-12-15-SFF is a 2 to 18 GHz, low noise amplifier that provides 24 dB of gain with a noise figure of 4.5 dB and offers an OP1dB of 14 dBm. The operating voltage is +15VDC and the current draw is 200 mA. Supplied in our PE2  housing that can be used as an SMA connectorized or surface mounted component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 18
Frequency Min (GHz): 2
Frequency Max (GHz): 18
Gain (dB): 24 dB Min
Gain Flatness: ±2.0 dB Max
Noise Figure (dB): 4.5 dB Max
OP1dB (dBm): 14 dBm Min
VSWR In/Out: 1.9:1 Max
DC Voltage (VDC): +15 VDC
DC Current (mA): 200 mA Max
Connectors: SMA Female - removable
Housing: PE2
Finish: Gold Plated
Environmental Ratings:
Temperature: -25 ºC to +85 ºC Operating,
-55 ºC to +85 ºC Available, -55ºC to +125 ºC Storage
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
